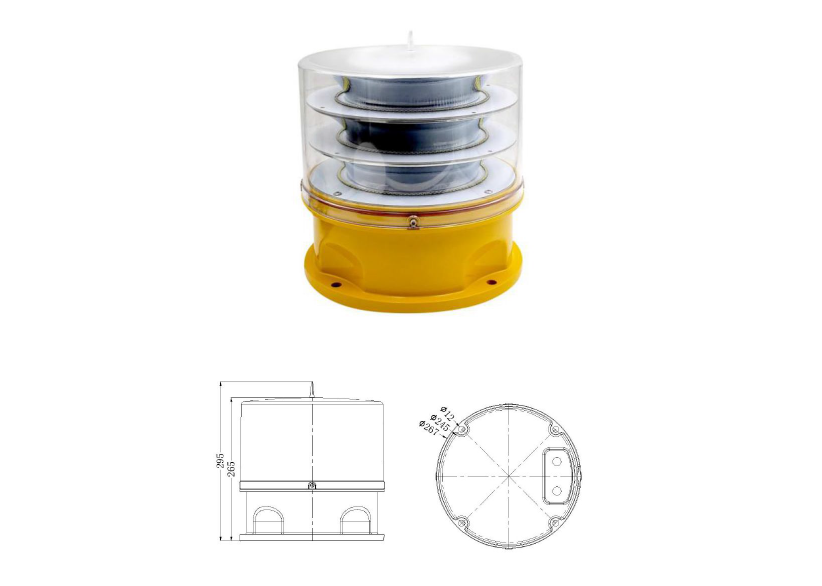

Aviation Light - TX-MAB-01 L
| Item# | LTESP01004 |
| Brand Name | LEYONG |
| MODEL NO | TX-MAB-01(L) |
| STANDARD | CAAC ICAO |
| FAA CLASSIFY | L-864/856 |
| POWER SUPPLY | OPTIONAL: AC220V, DC180V |
| POWER FREQUENCY | 50HZ~60HZ |
| POWER | ≤11W |
| WORKING MODE | FLASH 20times/min |
| LIGHT INTENSITY | 2000~20000CD |
| LIGHT SOURCE | LED |
| LIGHT SOURCE LIFE | ≥ 20YEARS |
| Emitted Color | Daytime:White, Night: Red |
| MH6012-2015 | Aviation obstruction Light |
| ICAO Annex 14Volume | 6th Edition | Airport Design and operation |
| Vertical Divergence | > 3° |
| Horizontal Out Put | 360° |
| Overall Size | φ245*4*M10 |
| Installation Size | φ245*4*M10 |
| Ambient Temprature | -40°C ~ 55°C |
| Weight | 7.6kg (Not include bracket) |
| Photocell Ambient Brightness | 50/100Lux |
| Anti Wind Ability | 240km/h |
| Protection Grade | IP65 |
