Aviation Light - TX-HA-01 (L)
| Item# | LTESP01001 |
| Brand Name | LEYONG |
| MODEL NO | TX-HA-01(L) |
| STANDARD | CAAC ICAO |
| FAA CLASSIFY | L-856 |
| POWER SUPPLY | OPTIONAL: AC220V, DC180V |
| POWER FREQUENCY | O50HZ~60HZ |
| POWER | ≤30W |
| WORKING MODE | FLASH 40times/min |
| LIGHT INTENSITY | 2000~20000CD |
| LIGHT SOURCE | LED |
| LIGHT SOURCE LIFE | ≥ 20YEARS |
| Emitted Color | White |
| MH6012-2015 | Aviation obstruction Light |
| ICAO Annex 14Volume | 6th Edition | Airport Design and operation |
| Vertical Divergence | > 3° |
| Horizontal Out Put | 90° |

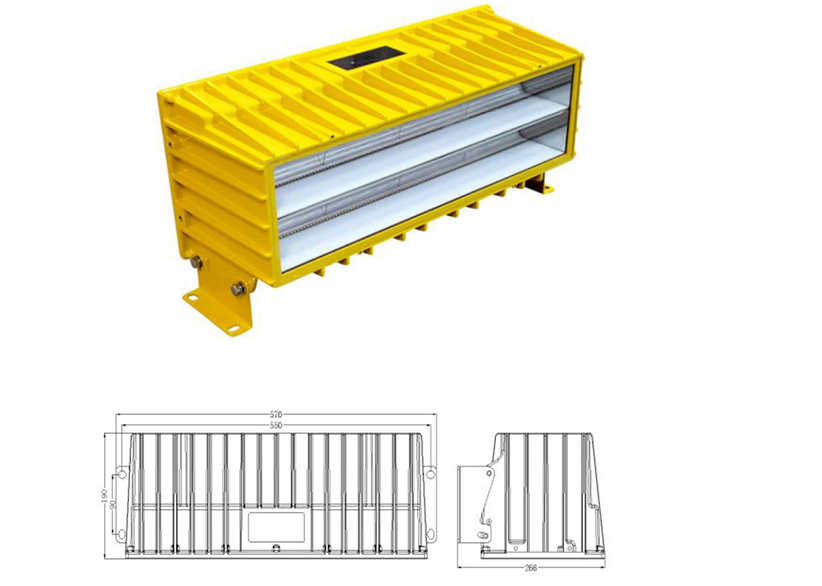

| Overall Size | 570*190*266mm |
| Installation Size | 550*90*M10 |
| Ambient Temprature | -40°C ~ 55°C |
| Weight | 11.6kg (Not include bracket) |
| Photocell Ambient Brightness | 150/100Lux |
| Anti Wind Ability | 240km/h |
| Protection Grade | IP65 |
