Aviation Light - TX-MC-01 L
Item# | LTESP01006 |
Brand Name | LEYONG |
MODEL NO | TX-MC-01(L) |
PERFORMED STANDARD | CAAC: MH/T 6012-2015 and AC-137-CA-2017 : AVIATION OBSTRUCTION LIGHT |
PERFORMED STANDARD | ICAO: ICAO Annex 14 Volume | The 8TH Edition: AIRPORT DESIGN AND OPERATION |
PERFORMED STANDARD | FAA: ADVISORY CIRCULAR 150/5345-43J: Specification for Obstruction Lighting Equipment |
POWER SUPPLY | AC220V, DC180V |
POWER FREQUENCY | 50HZ~60HZ |
AVERAGE POWER | ≤30W |
WORKING MODE | Steady Light |
LIGHT SOURCE LIFESPAN | ≥ 200000h |
LIGHT SOURCE | LED |
SURGE PROTECTION RATING | 5KA |
Get wet in the Rain | Can be exposed to rain in any wind direction |
Radiation | Can be expposed to solar radiation |
Seismic Resistance | 10~500Hz,2G | 10min/cycle,XYZ 60 | minutes for each axis |
Mean Time Between Failure | 200000h, MIL-HDBK-217 F(25°C) |
Vertical Divergence | > 3° |
Horizontal Out Put | 360° |

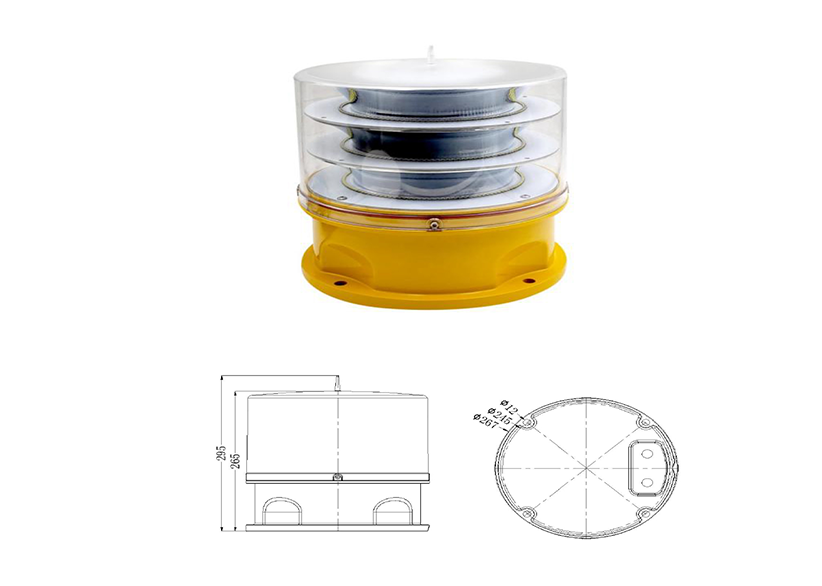

Overall Size | 267*267*295mm |
Installation Size | φ245*4*M10 |
Ambient Temprature | -40°C ~ 55°C |
Weight | 7.6kg (Not include mounting bracket) |
Wind Load | 240km/h |
Luminous Mirror Material | Optical PC |
Protection Grade | IP65 |
Relative Humidity | 0%~95% |
Salt Spray | Can be exposed to salt spray |
Insulation Characteristic | Between the input end and the hell:1.414kVDC. 10s No breakdown |
EMC Standards | Emitted: EN55022(CISPR22) class A harmonic wave: EN61000-3-2, -3 |
Leakage Current | < 10uA |
Elecric shock protection | Has |
Effective intensity | night: 2000CD |
Photocell ambient brightness | 50/100Lux |
