Wireless Crane Camera System - Hercules Scarlet
| Item# | LTESP01067 |
| Brand Name | SCARLET |
| MODEL NO | Hercules |

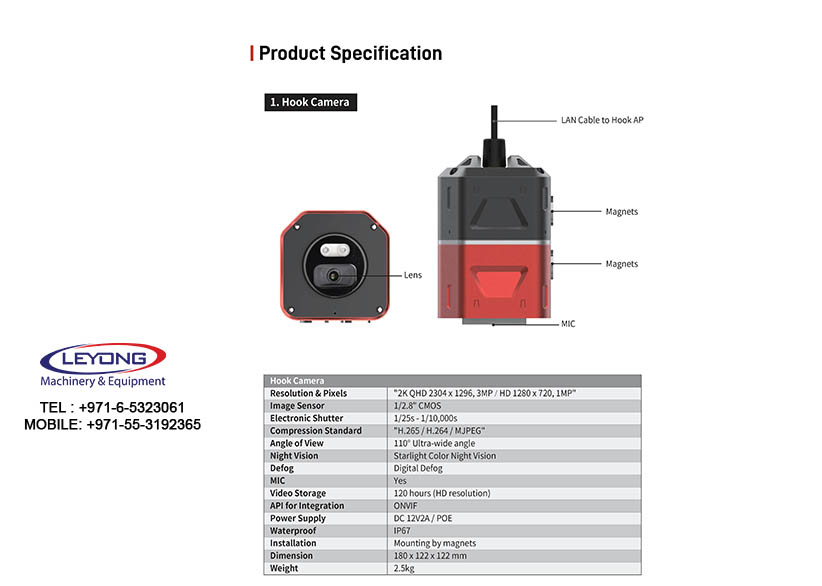

| Hook Camera | |
| Resolution & Pixels | "2K QHD 2304 x 1296, 3MP / HD 1280 x 720, 1MP" |
| Image Sensor | 1/2.8" CMOS |
| Electronic Shutter | 1/25s - 1/10,000s |
| Compression Standard | "H.265 / H.264 / MJPEG" |
| Angle of View | 110° Ultra-wide angle |
| Weight | 406g |
| Night Vision | Starlight Color Night Vision |
| Defog | Digital Defog |
| MIC | Yes |
| Video Storage | 120 hours (HD resolution) |
| API for Integration | ONVIF |
| Power Supply | DC 12V2A / POE |
| Waterproof | IP67 |
| Installation | Mounting by magnets |
| Dimension | 180 x 122 x 122 mm |
| Weight | 2.5kg |

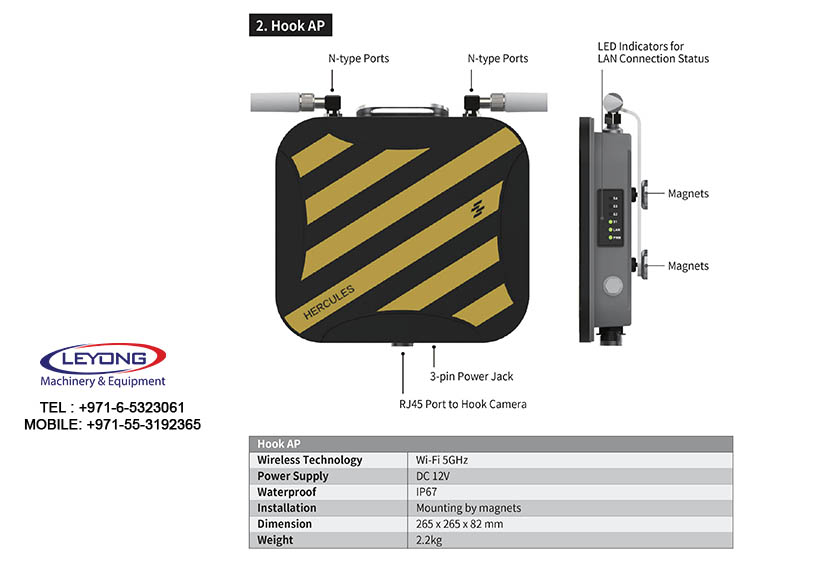

| HOOK AP | |
| Wireless Technology | Wi-Fi 5GHz |
| Power Supply | DC 12V |
| Waterproof | IP67 |
| Installation | Mounting by magnets |
| Dimension | 265 x 265 x 82 mm |
| Weight | 2.2kg |
| BATTERY PACK | |
| Battery Type | Molicel 26700 LiFePO4 |
| Battery Volume | 28000mAh |
| Working Hours | 35+ hours |
| LED Indicator | ±Power status |
| Power Input | DC 14.3~14.6V2A (Charging by Power Charger) |
| Power Output | 12V4A (Max |
| Waterproof | IP67 |
| Installation | Mounting by magnets |
| Dimension | 272 x 146 x 91 mm |
| Weight | 5kg |
| ATMOSPHERIC PRESSURE SENSOR | |
| Unit | hPa mmHg bar |
| Range | 500…1100 hPa |
| Resolution | 1 hPa 0.1 mmHg 0.001 bar |
| Accuracy | ±4 hPa |
| STREAM LINK STATION | |
| Wireless Technology | Wi-Fi 5GHz |
| Power Supply | DC 24V |
| Waterproof | IP67 |
| Installation | Mounting by magnets |
| Dimension | 230 x 230 x 93 mm |
| Weight | 1.1kg |

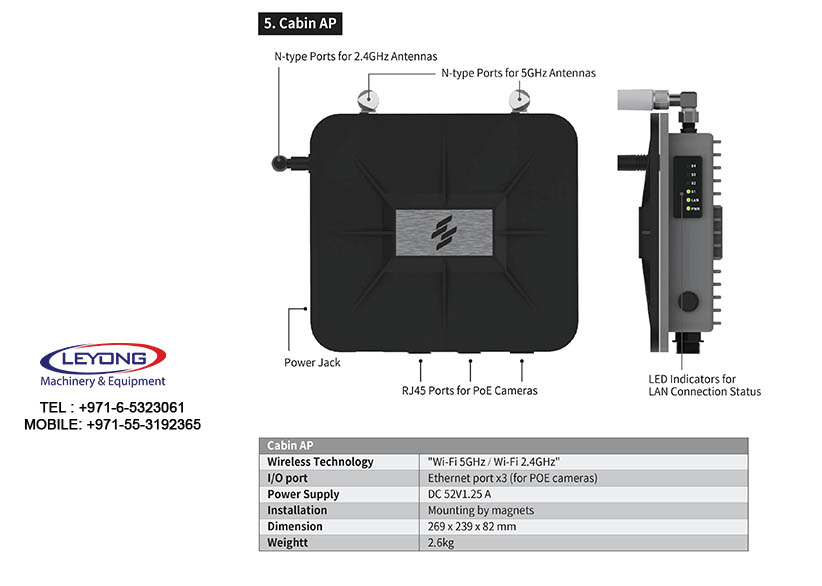

| CABIN AP | |
| Wireless Technology | "Wi-Fi 5GHz / Wi-Fi 2.4GHz" |
| I/O port | Ethernet port x3 (for POE cameras) |
| Power Supply | DC 52V1.25 A |
| Installation | Mounting by magnets |
| Dimension | 269 x 239 x 82 mm |
| Weight | 2.6kg |
| ANDROID TABLET | |
| OS | Android 10 |
| Display | 10” IPS Touch Screen |
| Resolution | 1280 x 800 |
| Wireless Connectivity | Wi-Fi 2.4GHz |
| CPU | Octa-core Processor |
| Memory | 2G RAM + 32G ROM |
| Power Supply | DC 5V2A |
| Installation | Mounting by bracket with clamp |
| Dimension | 247 x 193 x 40 mm (including case & holder) |
| Weight | 700g | Download Wireless Crane Camera System - Hercules Scarlet-> | Specification File for Wireless Crane Camera System - Hercules Scarlet |
