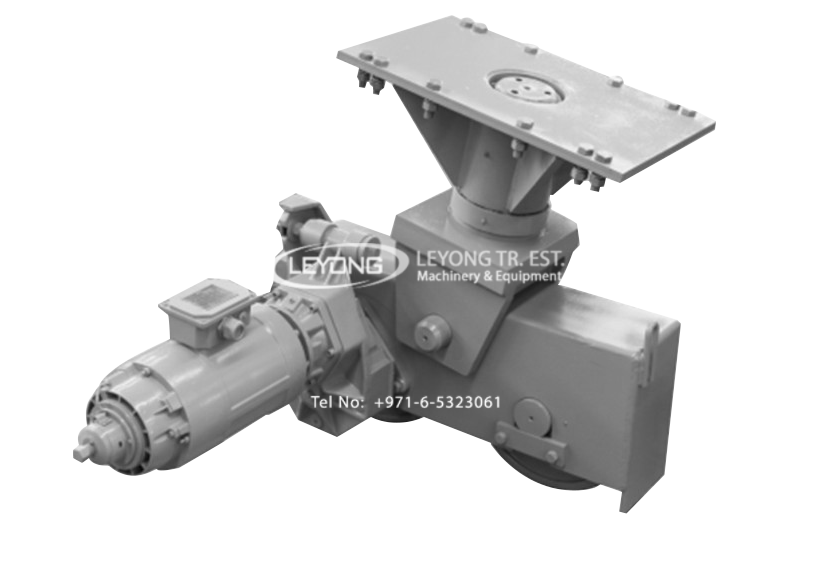

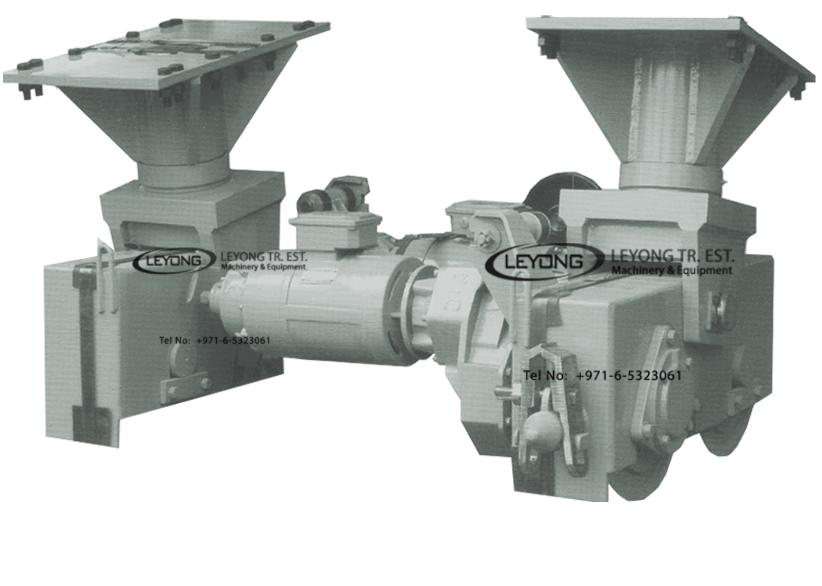

RT Travelling Mechanism adopts double speed motor connecting with reducer and directly driving traveling wheel. The motor tail is of the double effect disc brake with delay function for the impact when start and stop to ensure the travelling stable. RT series are Variable Frequency control Trolley Mechanism, with the same structure as TVF series. It has the advantage of high working efficiency, long service life, low maintenance cost, comfortable operation and so on.
| Item# | LTESP0000 |
| Brand Name | Leyong |
| Model no | RT324, RT443, RT544, RT643 |
| MOTOR Model | 35/35MN, YTEZ112M2-2/4, YTEZ112M2-2/4, YTEZ112M2-2/4 |
| Transmit Rate | 31.36, 140.2, 140.2, --- |
| Motor Power (KM) | 2 x 5.2/2.6, 4 x 3.4/1.7, 6 x 5.2/2.6, 6 x 5.2/2.6 |
| Speed m/min | 38.25-76.48, 17.12-34.25, 17.12-34.25, 16-32 |
| Applicable Crane t.m | QTZ 63-125(5013-F0/23B, 6015, 6018), QTZ 125-250(F0/23B, H3/36B, 7030), QTZ 400(7050, 7050B), QTZ 400(7050, 7050B) |
RT Travelling Mechanism
